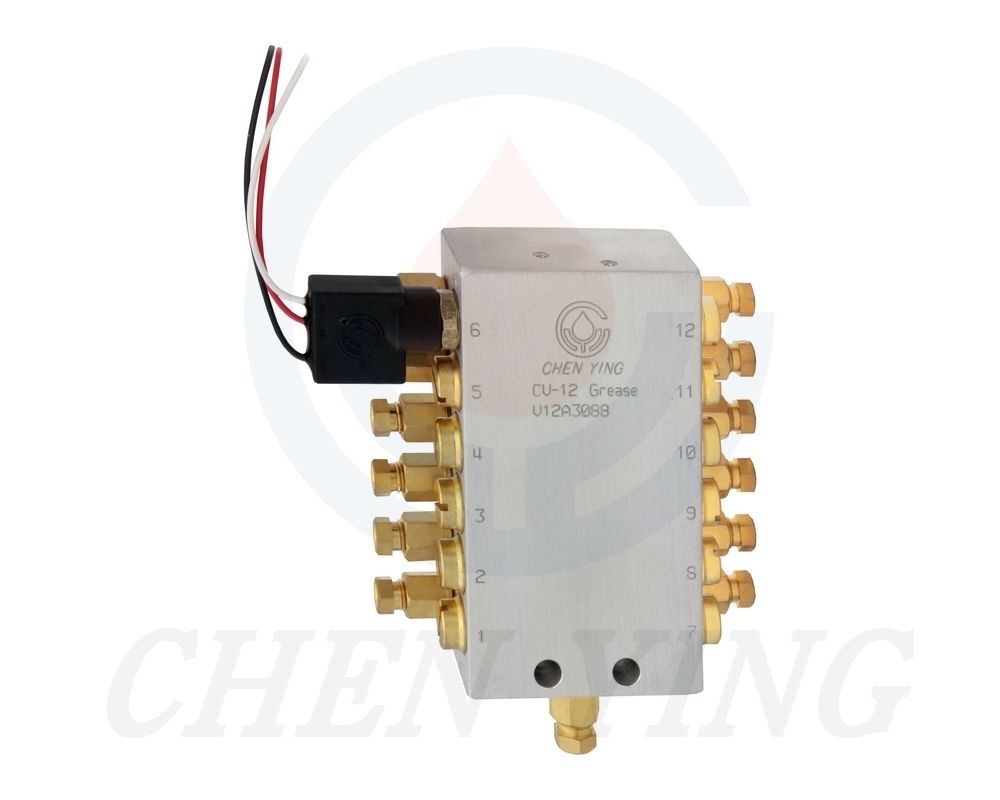

CV progressive feeder can deliver a fixed volume of lubricant to each lubrication point. The standard discharge volume is 0.18cc per stroke. The outlets of the CV progressive feeder can be combined for a larger discharge volume on request.
Each outlet of a CV progressive feeder has one piston inside. The lubricant flow moves each piston, and CV progressive feeder discharges lubricant one by one outlet to complete a circulation cycle.
Forbid to plug any CV progressive feeder outlet, or it cannot discharge lubricant functionally.
Each standard CV progressive feeder has an indicator pin that moves in and out once as a completed circulation cycle. Monitoring can be done visually or electronically with a sensor or proximity switch.
There are two types of inlet and outlet adapters: compression bushings with sleeves and quick couplings.
