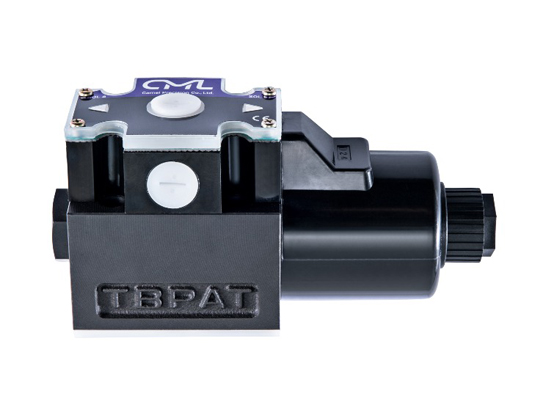

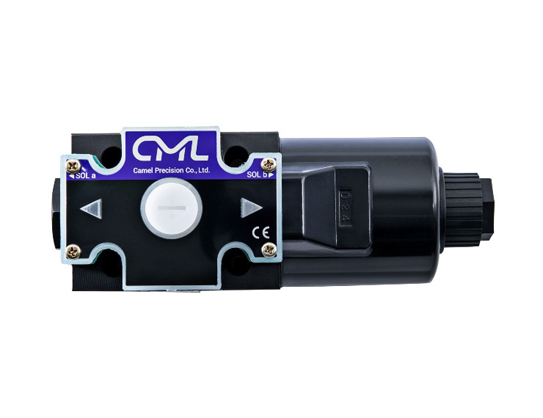

CML High Back Pressure Type Solenoid Valve WE series are used in the direction switching operation of Shoemaking machinery, metal processing machinery, and various hydraulic systems. Small size, sensitive switch action, fast switching and high efficiency. Applicable to international standards such as ISO, CETOP, NFPA and DIN.
The WE series has 10 diameters, with junction box and plug-type wiring methods, suitable for 50 / 60Hz current, the maximum operating pressure is 210bar, the maximum return pressure is 100bar, and the flow range is 63 ~ 120 (LPM). The spool type and reverse assembly can be selected according to the needs of the circuit.
For Spool type, Pressure Drop Curve and Assembly Instruction or related information, please refer to the attachment at the bottom of the page or contact CML professionals.

Feature
📌High pressure, large flow, low noise, Smooth motion when switching.
📌Dual-channel design, low impedance, high efficiency.
📌ISO standard measurements, easy to install.
📌Clear directional light indication
📌100% inspected, stable high quality.

Application
📌Cutting machinery: Four-post cutting machine, plane cutting machine, gantry cutting machine.
📌Die casting machine industry: Hot and Cold types die casting machine, Aluminum extrusion machine, Vertical squeeze Casting Machine, Gravity die casting machine.
📌Machine Tool Industry: CNC lathe, CNC milling machine, CNC turning and milling machine, CNC Surface grinder machine, band saw, circular saw.
📌Shoemaking machine industry: Toe-Lasting Machine, Seat/Side Lasting Machine, Heel-Lasting Machine, EVA injection machine, disc injection machine, Press machine, Cutting machine.
📌Rubber machinery industry: Horizontal Injection Molding Machine, Vertical injection machinery, Hollow Blow Molding Machine.

More Info.
https://www.cml-motion.com/en/product/WE42-G03-B11B-A220-N.html
