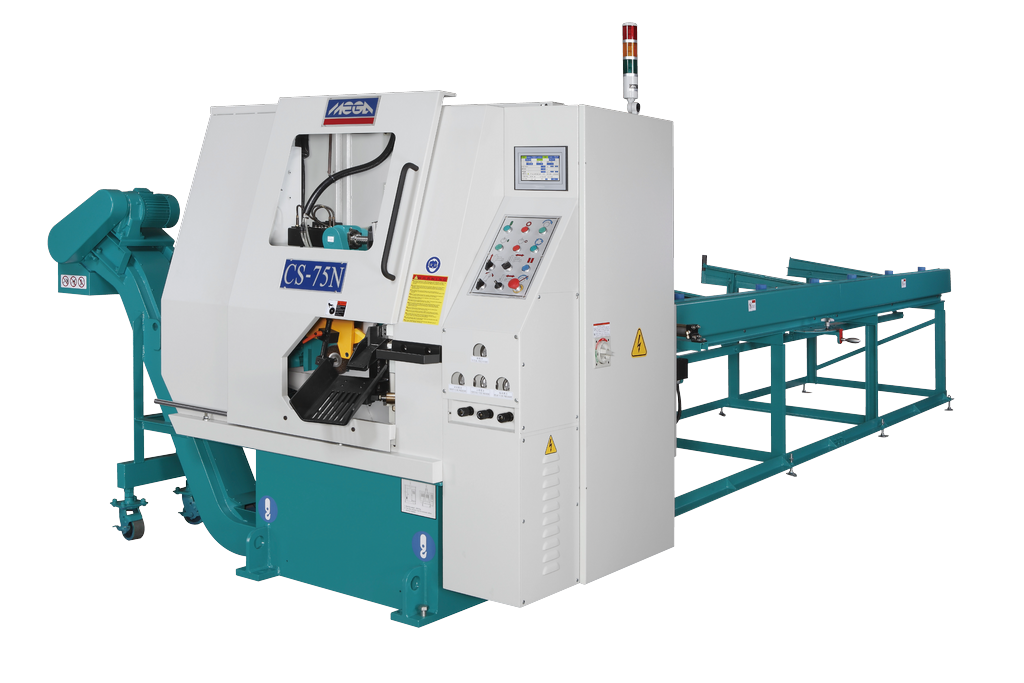

CS-75N NC High-Speed Automatic Carbide Precision Circular Metal Sawing Machine

FEATURE
DOUBLE PRODUCTIVITY
1. Enhance the speed of feeding metal material from 12 M/min to 24 M/min, and cycle time will be 50% less than before.
2. Enhance the power and precision of feeding and sawing with less feeding friction design, achieving faster production with high reliability and repeatability accuracy.
3. Special design makes the butt length shorter: 50 mm+sawing length (original 80 mm+sawing length).
4. Ball screws with a built-in anti-dust wiper system and splash-proof design, it doesn’t need flexible covers.
5. New built-in backlashless gear system without brake lining pads, without changing magnetic powder for the brake system, decreases maintenance costs significantly.
6. 7" wide touch screen control is for easier operation, monitoring & error codes history monitoring.
7. Variable vise pressure can be easily adjusted & monitored in front of the machine.
8. Detecting material size automatically with less cycle time, less operation time, and avoiding operating errors.
9. Trim cut ON/OFF function is available to choose from for different requirements.
10. Unique gear head design with a built-in backlashless gear system ensures smooth sawing, high efficiency, less noise, lower power consumption, precision, faster sawing, and longer circular saw blade service life.
11. Fiber photo sensors detect the bar end of different kinds of materials such as extruded bars, forging bars, etc., more accurately than before.
