Multi-axis Machine for Mass Production_UZ/UA-1500T2Y | Taiwan Cnc Machine Provider | ACCUWAY

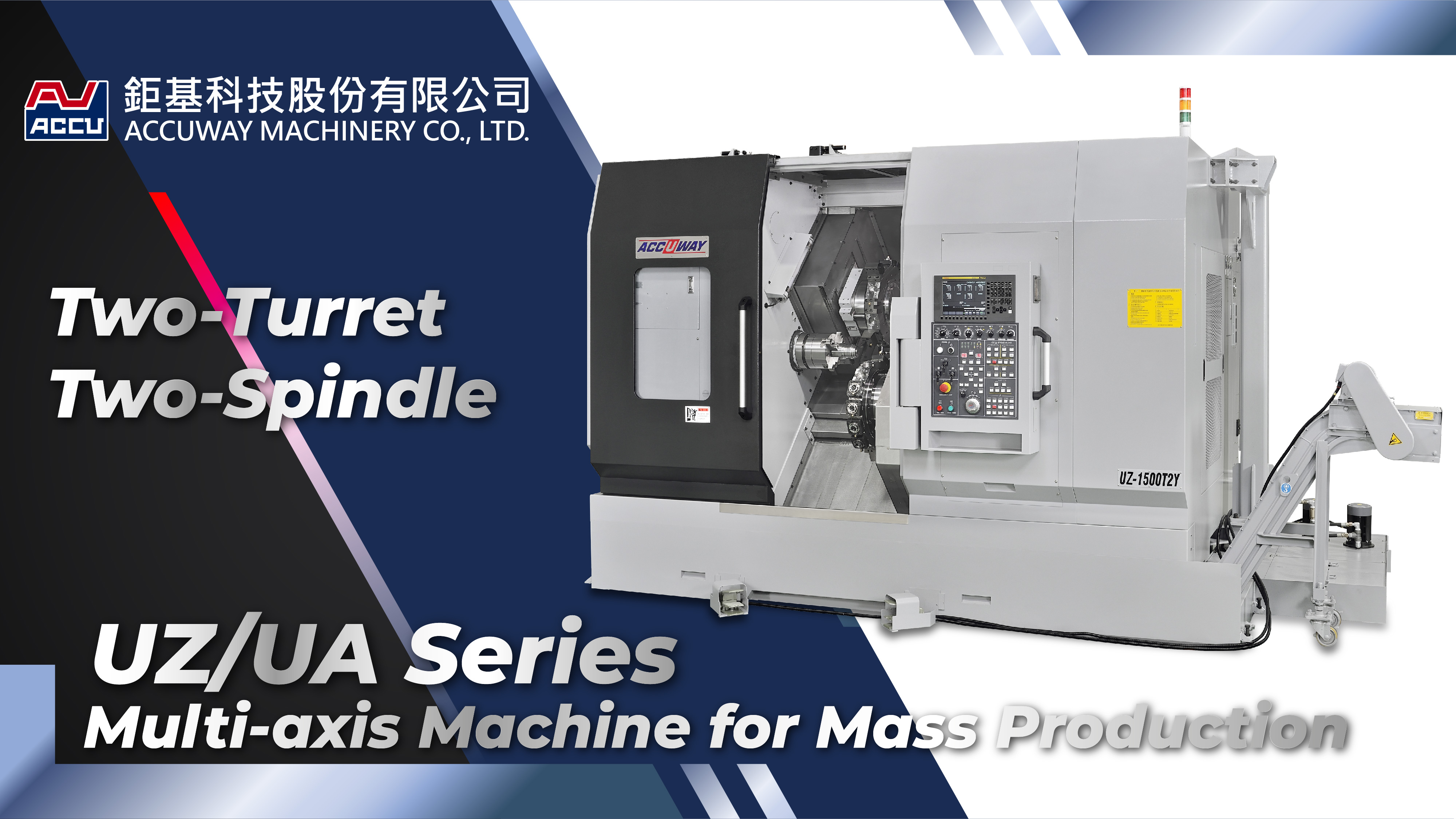

Multi-axis Machine for Mass Production
Increase Your Working Range and Large Working Area with Y-axis on Upper & Lower Turrets

· Gear-driven BMT live tool turret
· Opposed two-spindle, 2-turret construction
· Y-axis on upper turrets 100 ( ±50mm)
· 16+16 tools number of tool station
· One-piece bed, 45° slant-bed structural design
· Distance between spindles 900mm
· Max. Swing: 660 mm
· Max. Length: 480 mm
· Spindle: A2-6 in 4500 (Belt)
· Bar capacity: 52 mm
· Main spindle motor 11/15kW(Belt) 、Sub spindle motor 7.5/11kW(Belt)
