VMT

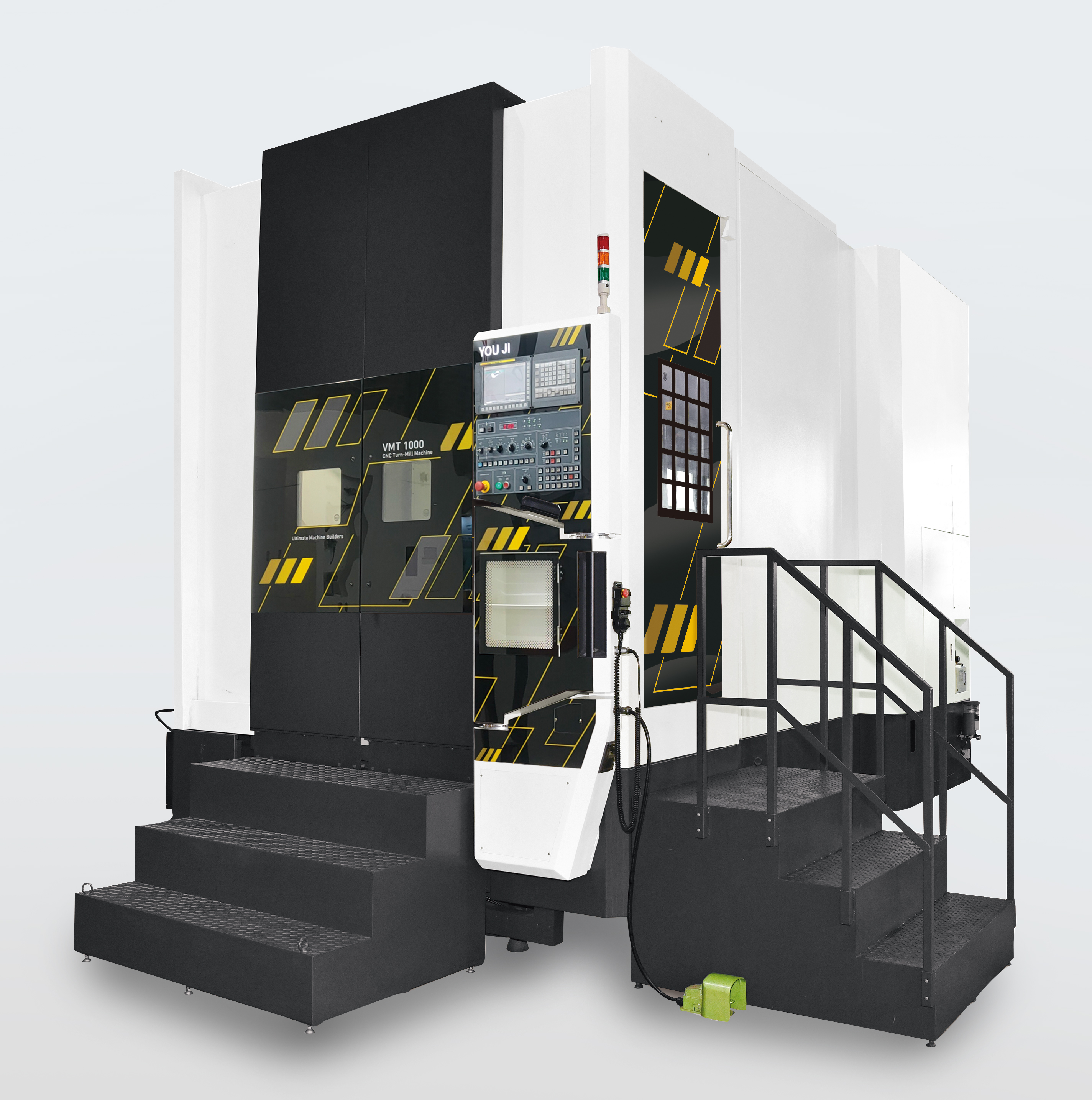

New VMT series
* Best solution to perform turning, vertical, horizontal, and angled
surface machining in one operation without reorienting the part
in the chuck.
* Cutting efficiency can be increased significantly and the lifetime of the tooling can be extended, reducing overall production
costs.
* High rigidity-Box ways for all axes
* Multi-sided and slope machining applications
* CF axis transmission to reduce backlash
* X、Y、Z axis direct drive transmission to increase transmission efficiency and rapid positioning capability
High rigidity structure
1. The unique technology from You Ji showcases the TRIPLE slide ways design, which is capable of maintaining excellent and precise motion
control in minimum movement.
2. CF axis combined with brake system and worm gear/shaft to eliminate backlash, min. indexing 0.001˚。
Reliable auto tool changing system
1. Automatic Arm type Tool Changer is the best way to ensure total control. The Programmable-ATC as the reliable design for less non-cutting time and higher efficiency.
2. The VMT series machines can be supplied with either 32 to 120 tool pocket High-Capacity Automatic Tool Magazines with bi-directional tool selection that shortens tool change time to effectively increase production efficiency.
Multiple angle power sub-spindle
1. Vertical, horizontal, and slope machining made possible by the milling tool spindle.
2. The milling tool spindle is locked with curvic coupling while turning (work spindle) applications get outstanding results even in heavy cutting.
3. Power sub-spindle (A and B axis) are designed with curvic couping structure Curvic coupling goes engagement after indexing or during turning so the torque value, power emission, and positioning accuracy are effective The overall rigidity and positioning accuracy are enhanced Users can choose to disengage the curvic coupling or engaged during the milling process There are more options for users( 5゜indexing; ranges from 0゜to 90゜), this design can achieve
