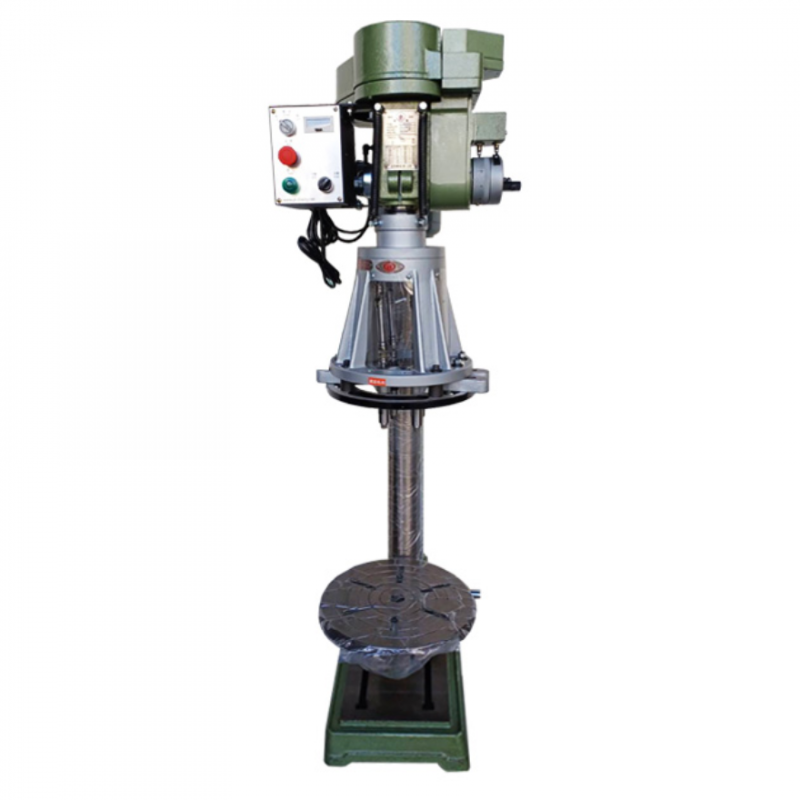

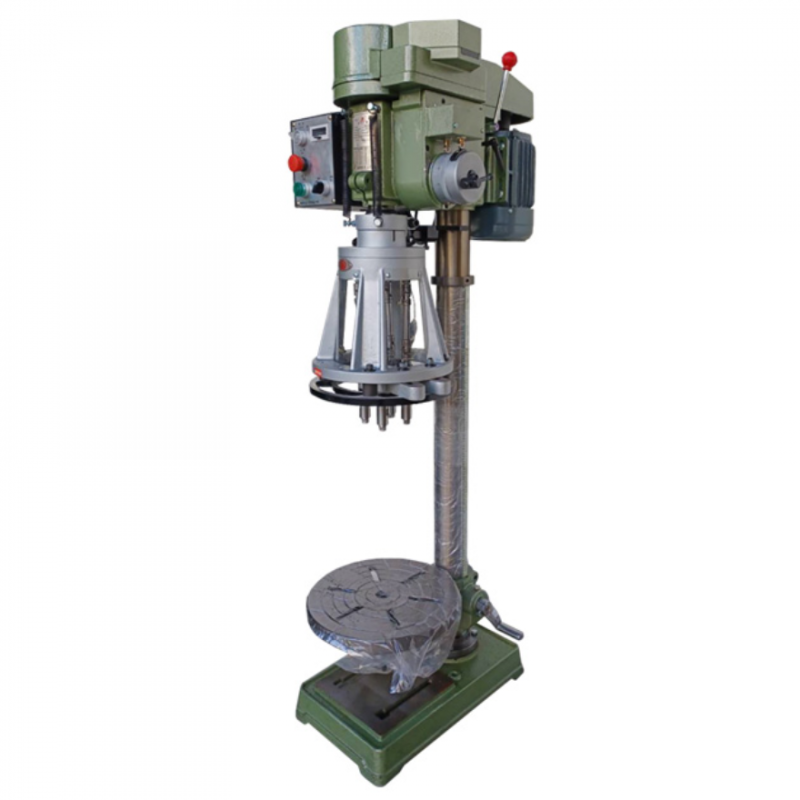

AT12 Automatic Tapping Machine+ QU165 X 4 Multiple Spindle Head
Product Description:
Stroke : Automatic
Spindle Type-Inside Spindle : MT2
Spindle Type-For Chuck : JT6
Max. Spindle PCD : 165mm
Min. Spindle Pitch By Every 2 Spindles : C6=18.7mm
Working Ability-Steel (S45C) : 3-13
Spindle Travel : 93mm
Motor : 1HP-4P
Spindle Speed RPM (Steps) :
50HZ : 256-1278 (8)
60HZ : 308-1534 (8)
Weight : 130kg
