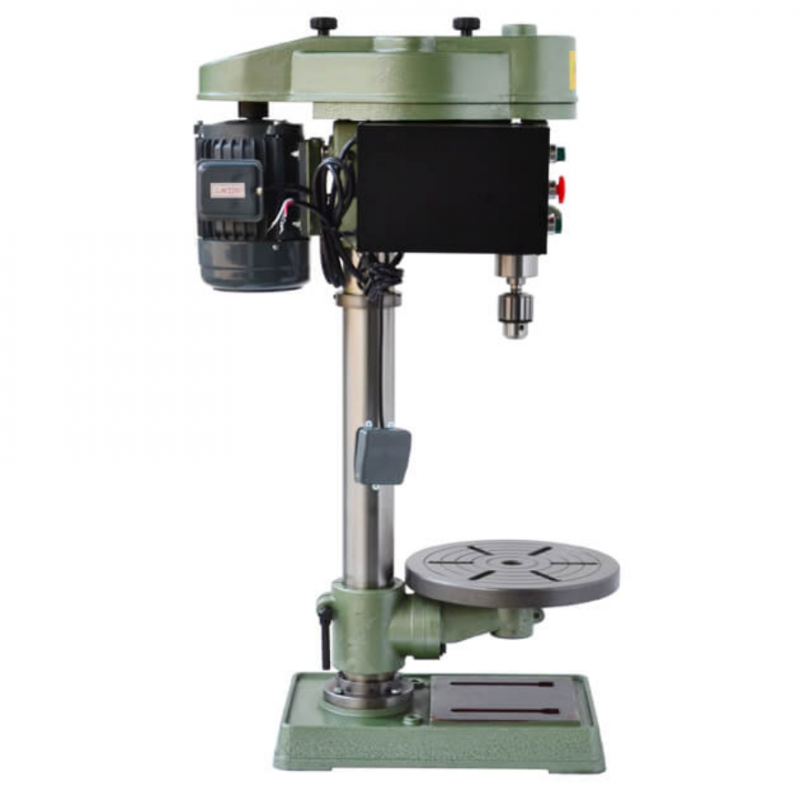

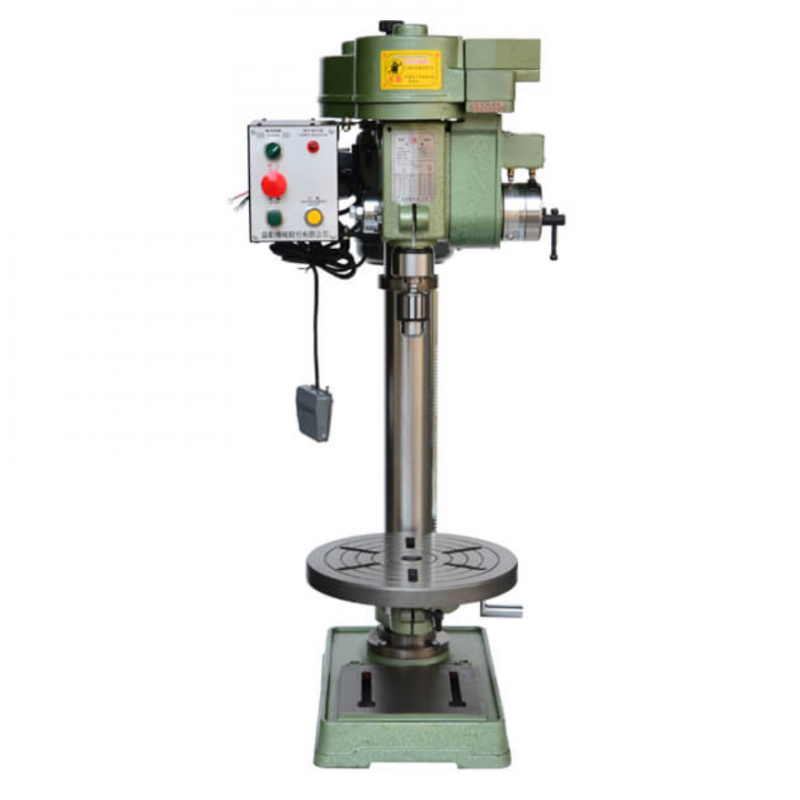

1. Yi Chang produced Horng Dar brand Bench Tapping Machines (Automatic) have patent rights both in Taiwan and China.

2. This type of machine is controlled by gear set to precisely set the depth of tapping.

3. Special relay gear design for quick exchanging of pitch setting gears.

4. To increase the production volume, the main spindle belt is designed to be with lightly weight to reduce heat caused by motor spinning significantly.

5. Machine structure is strengthened to perform precise tapping and decrease the damage to screws.

6. It is easy to operate and maintain the machine .

7. Quality made in Taiwan.
--------------------------------------
SPEC
Stroke : Automatic
Spindle Type-Inside Spindle : MT2
Spindle Type-For Chuck : JT6
Working Ability-Steel (S45C) : 3-13
Spindle Travel : 93mm
Motor : 1HP-4P
Spindle Speed RPM (Steps) :
50HZ : 256-1278 (8)
60HZ : 308-1534 (8)
Weight : 112kg
