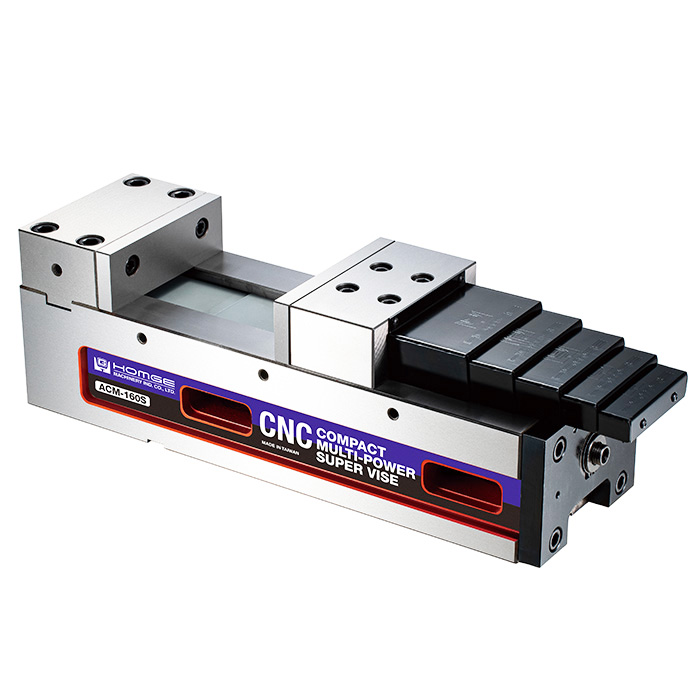

CNC Compact Multi-Power Super Vise (ACM-S)
Product Description:
●Shortest Vise Body
●Big Jaw Opening
●Compact Multi-Power System, Clamping force 0~5000kg
1. Compact design with big jaw opening, which enhances machine space utilization. Suitable for all kinds of horizontal and vertical CNC Machining Centers, also Tapping Centers.
2.Vise jaws are made of High quality Tool Steel (SCM440) and Hardened to achieve HRC 50, which makes vise clamp the workpieces easily and firmly.
3.Vise body is made of Ductile lron above FCD 60 grade and its slideways are hardened to HRC 50, which makes the vise tensile strength with high precision accuracy.
4.The patented MULTI-POWER SYSTEM is built of high grade BEARING STEEL which doubles the clamping force. Adjustable clamping force of 0-5000kg. With this special patented system the pressure is more consistent and eliminates oil leakage and maintenance problems associated with Hydraulic Vises.
5.Special Leadscrew Covers protect Leadscrew from swarf and avoid any possible damage to internal parts.
