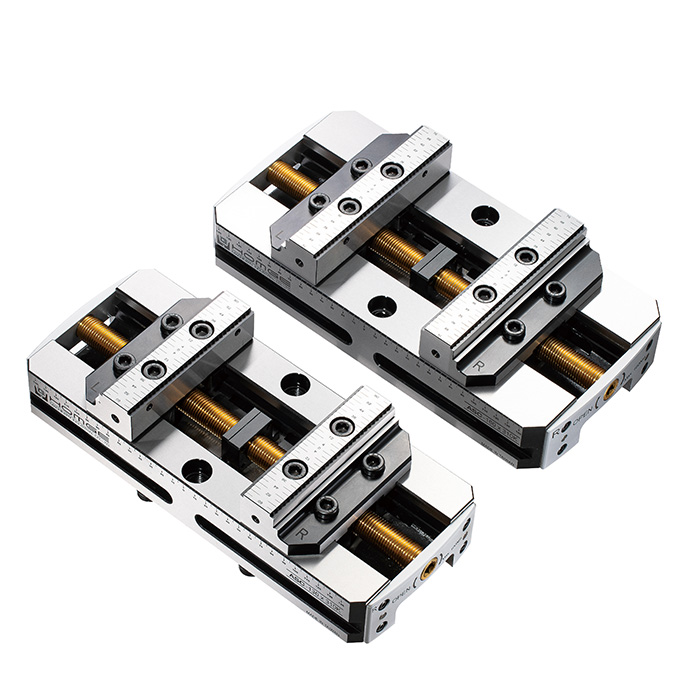

FIVE-AXIS ADJUSTABLE SELF-CENTERING VISE (ASC-K)
Product Description:
●High rigidity due to reinforced stud bolt seat and hard jaws, suitable for machining large workpieces
●Applicable to all machine tool models. With the patented center positioning threaded pin, users can regulate clamping center easily and rapidly.
●All ASC-Series Vises are dedicated to consistency in materials and manufacturing processes.
1.Vise body is made of High quality Steel (S50C) and its slideways gone through high-frequency hardening to achieve HRC50, which makes the whole part durable.
2.Detachable jaws are made of High quality Tool Steel (SCM440) and gone through carburizing to achieve HRC55. Since both sides are fixed size and able to be used as a datum, users can reverse them to increase clamping range.
3.The vise's clamping force can achieve 1300KG, the repeatability positioning precision of its clamping center is within ±0.02mm.
4.With the patented center positioning threaded pin, users can regulate clamping center easily and rapidly.
5.The 45° dovetail structure with teeth on the upper jaw ensures the bottom of the workpiece to be firmly clamped.
6.Applications: precision machining of four-axis, five-axis, CNC indexing table and vertical and horizontal CNC milling machines.
