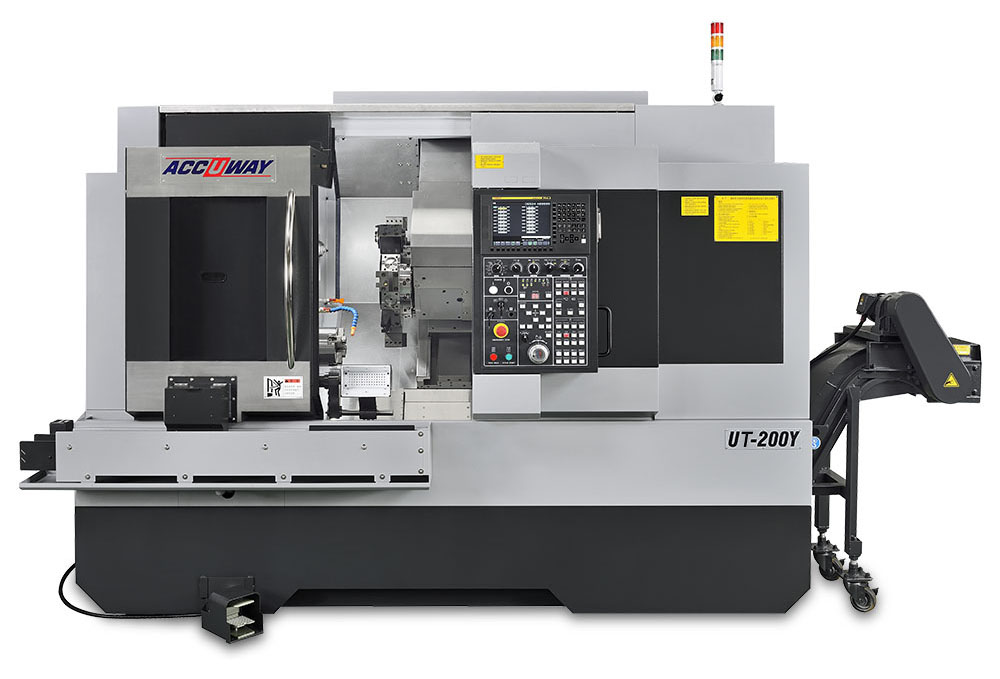

Multi-Tasking Slant Bed Turning Center UT-200Y / UA-200Y
Product Description:
Controller：FANUC 0i-T
Swing over bed：680mm
Swing over saddle：485mm
Max. turning diameter：240mm(UT-200Y)；155mm(UA-200Y)
Max. turning length：440 mm/ 365mm(UT-200Y)；500mm/425mm(UA-200Y)
Guide way type：Box Way
X-axis Travel：220mm
Z-axis Travel：600mm
Y-axis Travel ：±50mm
>click here to see more specifications<
