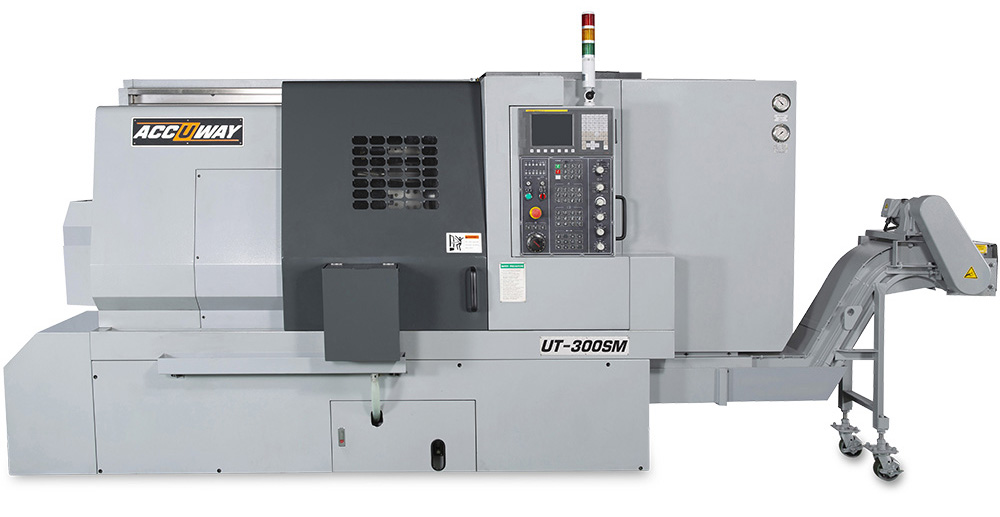

Multi-Tasking Slant Bed Turning Center UT-300S/UT-300SM
Product Description:
Controller：FANUC 0i-T
Swing over bed：612mm(UT-300S)；700mm(UT-300SM)
Swing over saddle：400mm(UT-300S)；500mm(UT-300SM)
Max. turning diameter(SP1)：500mm(UT-300S)；480mm(UT-300SM)
Max. turning diameter(SP2)：400mm(UT-300S)；375mm(UT-300SM)
Max. turning length：610mm/540mm(UT-300S)；540mm(UT-300SM)/470mm(UT-300SM)
Guide way type：Box Way
X-axis Travel：300mm(UT-300S)/280mm(UT-300SM)
Z-axis Travel：750mm(UT-300S)
B-axis Travel：700mm(UT-300S)
>click here to see more specifications<
