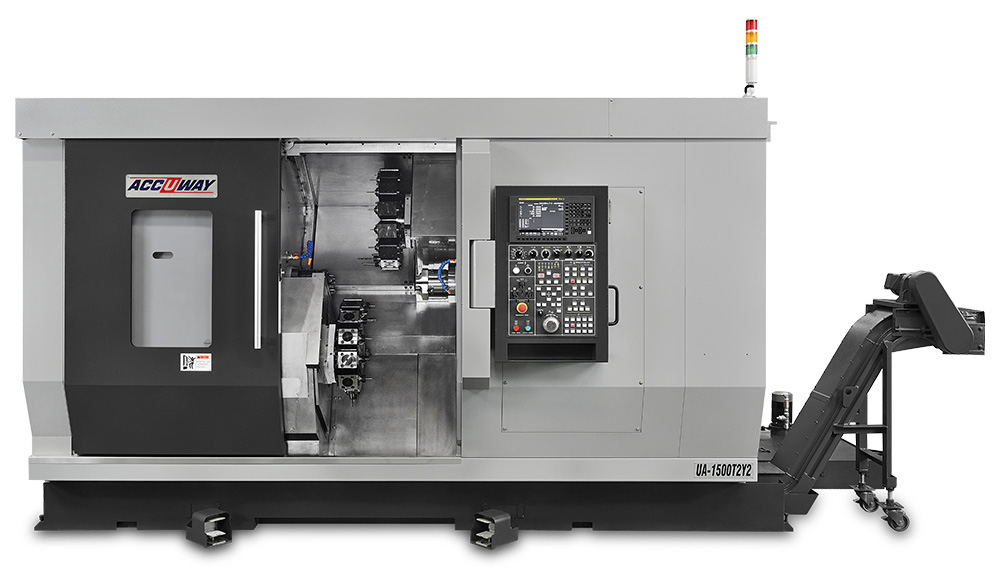

Multi-Axis Machine for Mass Production UA-1500T2Y2
Product Description:
Controller：FANUC 0i-T
Swing over bed：460mm
Swing over saddle：400mm
Max. Turning Diameter：200mm
Max. turning length：500mm
Guide way type：Linear + Box
X-axis Travel：X1/X2:160.5mm
Z-axis Travel：Z1/Z2:565mm
Y-axis Travel：Y1: ±50mm/Y2:±35mm
B-axis Travel：650mm
>click here to see more specifications<
