The Ultimate Guide to Selecting the Perfect Milling Head for Precision Machining

In the rubber and plastics industry, milling machines are critical equipment for mold manufacturing and processing, especially in the machining of precision molds and composite materials. These machines significantly improve product accuracy and production efficiency. Depending on different machining needs, the following milling machines are commonly used in the rubber and plastics industry:

1. Vertical Milling Machines:
   Used for detailed mold processing, suitable for precision cutting on vertical surfaces, particularly for producing complex mold shapes.

2. Horizontal Milling Machines:
   Suitable for machining flat and long workpieces in large quantities, ideal for large-scale mold cutting.

3. Gantry Milling Machines:
   Equipped with a large worktable, these machines are ideal for rough and fine machining of large molds and can handle complex angle cutting.

4. CNC Milling Machines:
   With high precision and automation capabilities, they are suitable for producing high-precision and complex molds, ensuring consistency in each workpiece.

5. Angle Heads:
   Used for machining at special angles, offering flexible adjustment of cutting directions, especially for irregular-shaped workpieces.

◎The Key Role of Milling Heads

Milling heads play a crucial role in the milling process within the rubber and plastics industry. They determine the angle, flexibility, and precision of the cutting process. The choice of milling heads directly affects the quality of the workpiece and production efficiency. Yih Kuan Enterprise's angle heads and gantry milling heads perform exceptionally well in handling complex mold processing, allowing for precise angle adjustments and accommodating diverse workpiece requirements.

The flexibility and high precision of milling heads ensure stable machining, while reducing workpiece changeover time, thus increasing production line efficiency. Replacing milling heads not only extends the overall lifespan of the equipment but also adapts to various machining environments, giving companies a competitive edge in mass production.

These milling technologies play a critical role in mold processing and mass production in the rubber and plastics industry. By utilizing angle and gantry milling heads produced by Yih Kuan Enterprise, companies can improve production efficiency and meet the demands of precision machining.

Introduction

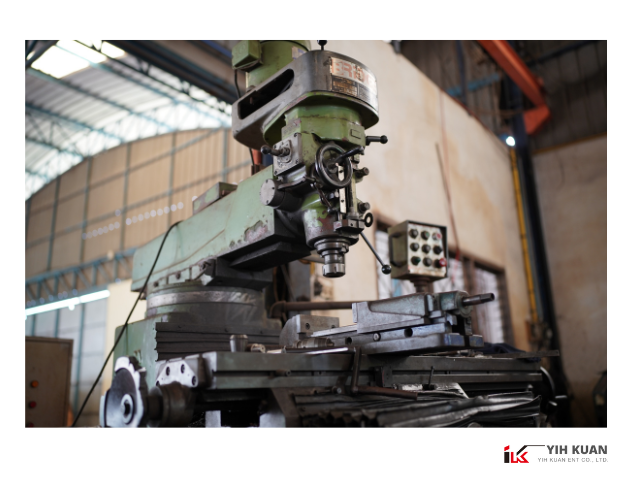

Turret milling machines are foundational in many manufacturing settings, valued for their versatility and precision in detailed machining tasks. To further enhance their capabilities, Yih Kuan Enterprise Co., Ltd. introduces innovative milling heads, including horizontal and angle heads, designed to extend the functionality and efficiency of turret milling machines. For more insights on the importance of angle heads in turret milling, explore our detailed discussion here.

Understanding Turret Milling Machines

Turret milling machines are distinguished by their stationary spindle and the table that moves both perpendicular and parallel to the spindle axis to accomplish cutting tasks. This configuration allows for flexible machining operations, making the turret mill ideal for smaller manufacturing jobs involving intricate detailing or prototyping.

Key Advantages of Turret Milling Machines

• Versatility: They can perform a range of functions including drilling, cutting, and shaping across multiple axes.
• Precision: With advanced controls, they can achieve precise cuts with high accuracy.
• Ease of Use: Turret mills are generally more user-friendly and easier to set up compared to larger milling machines.

Integrating Advanced

Milling Heads Yih Kuan's new line of milling heads, specifically designed for turret milling machines, expands these capabilities:

• Horizontal Milling Heads: These enhance the ability to efficiently remove material over large surface areas, making them ideal for jobs requiring extensive milling.
• Angle Heads: Allow machining at various angles, significantly reducing the setup time and enabling complex geometries to be machined more easily.

Applications and Benefits

• Enhanced Machining Options: With the integration of these advanced milling heads, manufacturers can take on more complex projects, such as multi-angle cuts and extensive material removal, without the need for multiple setups or different machines.
• Increased Productivity: The ability to perform diverse tasks with a single setup reduces downtime and increases throughput.
• Cost Efficiency: By enhancing the capabilities of the turret milling machine, manufacturers can avoid the high costs associated with purchasing specialized machinery.

Maintenance and Replacement

Maintaining these advanced milling heads involves regular checks for alignment, wear, and proper lubrication. Signs that indicate a need for maintenance or replacement include unusual noise, decreased efficiency, and poor finish quality. Timely attention to these signs ensures continuous high performance and extends the lifespan of both the machine and the head.

Conclusion

The addition of Yih Kuan’s advanced milling heads to your turret milling operations can transform your production capabilities, making it possible to tackle more complex and varied tasks efficiently. For manufacturers looking to enhance their machining processes and explore new manufacturing possibilities, Yih Kuan offers the tools and expertise to make it happen.

Call to Action

Explore the full potential of your turret milling machines with Yih Kuan’s innovative milling heads. Contact us today to learn more about how our products can enhance your manufacturing efficiency and productivity.

Milling machines play a crucial role in the semiconductor industry. While the core work in semiconductors primarily involves manufacturing tiny electronic components, milling machines are indispensable tools in the production of processing equipment and related precision parts. Yih Kuan Enterprise, as a professional milling head manufacturer, is dedicated to providing high-precision, high-performance milling heads suitable for various applications in the semiconductor industry. Here are the applications of milling machines and Yih Kuan’s milling heads in the semiconductor industry:

1. Processing Equipment Components

Semiconductor manufacturing equipment requires highly precise components, such as mechanical structures, supports, and bases. Yih Kuan’s high-precision milling heads play a key role in processing these components. By using Yih Kuan milling heads, manufacturers can significantly enhance machining accuracy, reduce errors, and ensure stable operation of the equipment under the high demands of semiconductor manufacturing processes.

2. Mold Manufacturing

In the semiconductor packaging process, molds are used to create the casings for chip packaging, requiring extremely precise machining. Yih Kuan’s milling heads are particularly important in mold manufacturing. The specialized milling heads provided by Yih Kuan achieve the required surface finish and dimensional accuracy, ensuring high-quality mold manufacturing and long-lasting durability.

3. Heat Diffusion Equipment Processing

Some semiconductor processes require heat diffusion techniques, and the manufacturing of this equipment often involves milling machines. Using Yih Kuan’s specially designed milling heads allows for better control of heat generation during machining, reducing material deformation and ensuring long-term stability and accuracy of the equipment.

4. Test Fixture Manufacturing

Milling machines can also be used to manufacture various test fixtures, which are used to hold semiconductor wafers and other components for testing and analysis. Yih Kuan’s milling heads, with their precise design, improve the accuracy and efficiency of fixture manufacturing, ensuring stability and reliability during testing processes.

5. Reducing Energy Consumption and Improving Efficiency

In the semiconductor industry, choosing the right milling heads can effectively reduce energy consumption and improve machining efficiency. Yih Kuan’s high-performance milling heads can reduce mechanical wear and heat generation, thereby lowering cooling requirements and energy consumption. This not only helps to reduce operating costs but also aligns with environmental protection and sustainable development goals.

In conclusion, milling machines and Yih Kuan’s specialized milling heads have a wide range of applications in the semiconductor industry. Whether it is for processing equipment components, mold manufacturing, or test fixture production, high-precision and high-performance Yih Kuan milling heads are indispensable. By selecting and using Yih Kuan milling heads, companies can effectively enhance machining accuracy, efficiency, and environmental performance, allowing them to play a greater role in semiconductor manufacturing.

Introduction

In the realm of industrial manufacturing, gantry milling machines stand out for their robust capabilities in handling large and intricate workpieces. The decision between CNC and traditional gantry milling machines can impact production efficiency, precision, and operational cost. This article delves into the distinctions between these two types of machines, discusses the critical role of milling heads manufactured by Yih Kuan, and outlines best practices for their maintenance and replacement.

Understanding Gantry Milling Machines

Gantry milling machines feature a bridge-like structure that spans over the workpiece, allowing the milling head to move along the X, Y, and Z axes. This setup provides stability and support for machining large parts, making it ideal for heavy-duty industries.

CNC Gantry Milling Machines

• Technology: Utilizes computer numerical control to automate and precisely control all movements, ensuring high accuracy and repeatability.
• Advantages: Offers significant improvements in speed, efficiency, and the ability to produce complex geometries with minimal human intervention.
• Industries Served: Particularly favored in aerospace, automotive, and precision engineering industries where complex, repetitive tasks are common.

Traditional Gantry Milling Machines

• Technology: Operates based on manual adjustments and settings, which requires skilled operators to achieve the desired accuracy.
• Advantages: Cost-effective for simpler, less intricate tasks. It allows for direct control and adjustments by the operator, often preferred in custom or specialized projects.
• Industries Served: Used widely in shipbuilding, heavy equipment fabrication, and industries where large scale, less complex machining is required.

The Role of Milling Heads in Gantry Milling Machines

Milling heads play a pivotal role in the functionality of both CNC and traditional gantry milling machines. Yih Kuan designs and manufactures high-quality milling heads suitable for a diverse range of machining needs, ensuring that whether your operations require precision CNC applications or robust traditional machining, the right tool is available.

Importance of Milling Heads: The performance of a gantry milling machine largely depends on the quality and condition of its milling head. These components are crucial for efficiently cutting, carving, and shaping metal and other materials. The precision and durability of a milling head significantly influence the machining accuracy and the quality of the final product.

Maintenance and Replacement Indicators:

Maintenance: To ensure consistent performance and prolong the life of milling heads, regular maintenance is crucial. This includes routine lubrication, cleaning, and inspection for wear and tear. Keeping milling heads in good condition helps in maintaining the precision and efficiency of the machine.

Signs that Indicate Maintenance or Replacement:

• Decreased Performance and Efficiency: If the milling machine starts taking longer to complete tasks or struggles with operations that it used to handle easily, it might be time to check the milling head.
• Poor Surface Finish: A deterioration in the surface finish of machined parts, such as roughness or unexpected marks, can indicate that the milling head is worn out or damaged.
• Increased Vibration or Noise: An increase in noise or vibration during operation can suggest that the milling head's components may be worn or misaligned.
• Visible Wear or Damage: Any visible cracks, chips, or wear on the milling head are clear indicators that maintenance or replacement is necessary.
• Excessive Heat Generation: Overheating during operations can be a sign of a dull or improperly lubricated milling head.
• Difficulty in Tool Insertion or Removal: Problems with changing tools can indicate issues with the spindle or tool holder components of the milling head.

Choosing Between CNC and Traditional Machines

When deciding between a CNC and a traditional gantry milling machine, manufacturers should consider:

• Production Requirements: Evaluate the complexity of the parts being produced and the precision required.
• Volume: High-volume manufacturers may find the automation of CNC machines more beneficial, while traditional machines may be more cost-effective for lower volumes.
• Cost: CNC machines represent a higher initial investment but offer savings through faster production times and reduced labor costs over time.

Conclusion

The choice between CNC and traditional gantry milling machines depends largely on specific production needs, cost considerations, and desired outcomes. With Yih Kuan’s high-quality milling heads, manufacturers can enhance both types of machines, ensuring efficient and precise machining operations. Yih Kuan remains committed to supporting manufacturers in choosing the right equipment and maintaining it to the highest standards. For further information on selecting and caring for milling heads suitable for your gantry milling machines, please contact Yih Kuan. We are dedicated to helping you optimize your manufacturing processes and achieve superior results.

Introduction

Angle milling heads are pivotal in enhancing the versatility and efficiency of machining operations, allowing machines to reach otherwise inaccessible angles with precision. At Yih Kuan, we offer a range of angle milling heads including 90° angular heads, 90° deep milling heads, and 45° universal milling heads, designed to fit various machining setups such as vertical/horizontal machining centers, gantry milling machines, boring mills, and milling machines. This article explores the distinct features and applications of each type to help you select the best milling head for your requirements.

Understanding Different Angle Milling Heads

Angle milling heads are specialized tools that facilitate machining at various angles, which is critical when working on complex parts with intricate geometries. Here are the key differences between the angle heads we offer:

90° Angular Head

• Features: This head positions the tool at a precise 90-degree angle relative to the workpiece, making it ideal for side milling, drilling, and tapping operations that require orthogonal approaches.
• Applications: Perfect for jobs that demand precision in creating perpendicular features and external edges.

90° Deep Milling Head

• Features: Similar to the standard 90° angular head but designed for deeper cuts and extended reach within cavities or alongside protrusions.
• Applications: Used extensively in mold making and automotive industries where accessing deep pockets and performing complex side milling are necessary.

45° Universal Milling Head

• Features: Offers the flexibility to adjust the tool orientation to 45 degrees, providing an optimal angle for chamfering, beveling, and inclined surface machining.
• Applications: Ideal for aerospace and general engineering sectors where angled features and chamfers are frequently required.

How to Choose the Right Angle Milling Head

Selecting the appropriate angle milling head depends on the specific machining tasks and the geometry of the parts being manufactured:

• Material and Geometry Considerations: Assess the types of materials you work with and the complexities of the part geometries. For standard side milling and drilling, a 90° angular head might suffice, while more complex parts with deep recesses may necessitate a 90° deep milling head.
• Machining Center Compatibility: Ensure the selected head is compatible with your existing machining center in terms of mounting, rotational speed, and torque capabilities.
• Production Requirements: For high-volume production with repetitive angled cuts or features, the 45° universal milling head offers the versatility needed for various operations without the need for frequent tool changes.

Conclusion

Angle milling heads significantly expand the capabilities of standard machining centers by allowing for precise angled cuts and operations. Whether you need a head for straightforward perpendicular operations, deep pocket machining, or versatile angled applications, Yih Kuan has the solution. Our range of 90° angular heads, 90° deep milling heads, and 45° universal milling heads are engineered to meet diverse manufacturing needs, enhancing both flexibility and precision in your machining processes. For more information on how our angle milling heads can benefit your operations, or to discuss your specific machining challenges, please contact Yih Kuan. We’re here to help you achieve optimal machining efficiency and quality.

In the mold industry, traditional milling machines such as turret milling machines and gantry milling machines play a crucial role in ensuring high precision, efficiency, and flexibility in mold manufacturing. Despite the advancements in CNC technology, these traditional machines remain indispensable for various reasons.

1. Precision and Versatility

Traditional milling machines are known for their ability to perform a wide range of operations with high precision. Turret milling machines, for example, offer versatile functionalities such as drilling, cutting, and slotting, which are essential for producing complex mold components. Gantry milling machines, with their large worktable and high rigidity, excel in machining large and heavy molds with intricate details.

2. Robustness and Stability

The robust construction of traditional milling machines ensures stable and accurate machining. Gantry milling machines, in particular, provide exceptional stability due to their strong and rigid structure, making them ideal for heavy-duty operations. This stability reduces vibrations and enhances the precision of the final mold, ensuring a high-quality end product.

3. Cost-Effectiveness

Traditional milling machines often have lower initial costs compared to advanced CNC machines. This makes them an attractive option for small to medium-sized mold manufacturers. Additionally, the maintenance and operational costs of traditional milling machines are generally lower, contributing to overall cost savings for the company.

4. Adaptability to Various Materials

Traditional milling machines can handle a variety of materials, from metals like steel and aluminum to plastics and composites. This adaptability is crucial in the mold industry, where different projects may require the use of different materials. The ability to switch between materials without significant reconfiguration makes these machines highly versatile.

5. Skilled Workforce Utilization

Many skilled machinists are well-versed in operating traditional milling machines. Leveraging their expertise can enhance productivity and ensure high-quality outcomes. This existing knowledge base reduces the need for extensive retraining and allows for a smoother workflow within the manufacturing process.

6. Customization and Flexibility

Turret and gantry milling machines allow for a high degree of customization. Machinists can manually adjust settings to accommodate specific project requirements, offering flexibility that is sometimes limited in fully automated systems. This customization capability is particularly valuable for producing unique or specialized molds.

7. Enhancing Production Efficiency

While traditional, these milling machines can be integrated into modern production systems to enhance efficiency. For instance, combining manual adjustments with digital readouts and automated controls can improve precision and reduce setup times. This hybrid approach can maximize the strengths of traditional milling while incorporating modern efficiencies.

8. Reducing Energy Consumption

Traditional milling machines, when properly maintained, can operate efficiently with moderate energy consumption. Implementing energy-efficient practices, such as regular maintenance and optimized machining processes, can further reduce energy usage. This focus on energy efficiency not only lowers operational costs but also aligns with sustainable manufacturing practices.

Conclusion

Traditional milling machines, including turret milling machines and gantry milling machines, continue to hold significant importance in the mold industry. Their precision, versatility, robustness, cost-effectiveness, and adaptability make them indispensable tools for mold manufacturers. Yih Kuan can assist milling machine users with upgrades and spindle head replacement services. Through performance matching and custom integration, manufacturers can achieve a balance of production efficiency, quality, and sustainability at a lower cost.
