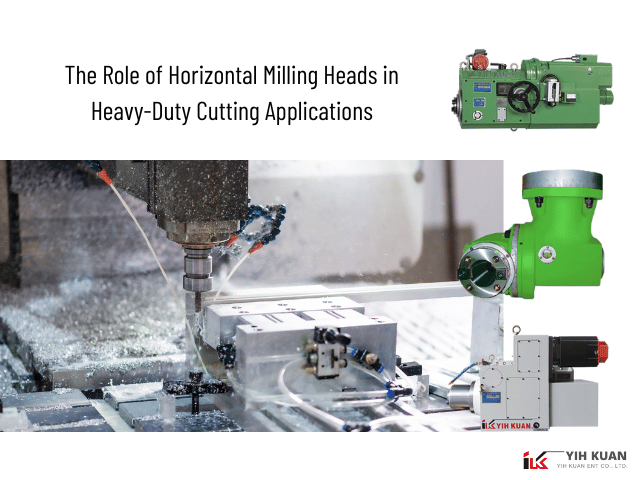

The Role of Horizontal Milling Heads in Heavy-Duty Cutting Applications
In modern machining, horizontal milling machines are the backbone of heavy-duty cutting operations. Known for their superior rigidity and power, these machines are ideal for removing large amounts of material, handling oversized workpieces, and maintaining high accuracy under continuous loads. However, the real driving force behind their performance lies in one critical component — the milling head. Whether it’s a simple manual setup or an advanced CNC system, the milling head determines the precision, versatility, and efficiency of every cut.
What Is a Horizontal Milling Head?
A horizontal milling head is a mechanical unit mounted on the spindle of a horizontal milling machine. Unlike vertical configurations, the spindle of a horizontal head is positioned parallel to the worktable, allowing the cutting tool to approach the workpiece from the side. This orientation makes horizontal milling particularly effective for deep cuts, slotting, and heavy stock removal.
Modern horizontal milling heads often feature adjustable angles, multiple spindle taper options (such as NT40 or NT50), and enhanced cooling systems to handle the heat generated during intensive machining. For manufacturers, the right milling head can transform a standard horizontal mill into a highly flexible and productive tool capable of performing multi-directional machining with high repeatability.
Why Milling Heads Matter in Heavy-Duty Applications
The milling head is not just an accessory — it’s the core of the cutting process. In heavy-duty operations, where tool pressure, torque, and vibration are extreme, a well-engineered head ensures consistent performance and extended tool life. Here’s why it matters:
- Power Transmission: The head’s internal gearing and bearings must efficiently transmit torque from the motor to the cutting tool without power loss or slippage.
- Thermal Stability: High-strength alloys, precision bearings, and heat-treated housings maintain dimensional accuracy even under prolonged use.
- Vibration Control: Balanced design minimizes chatter and ensures smooth cutting, critical for achieving high-quality surface finishes.
- Multi-Axis Flexibility: Advanced heads allow tilting, swiveling, and rotating movements, expanding the range of possible cutting angles and surfaces.
Types of Milling Heads for Horizontal Machines
Yih Kuan Ent Co., Ltd., designs a comprehensive range of milling heads to suit different machining environments — from traditional manual mills to CNC gantry systems. Each type serves a distinct purpose but shares the same DNA of precision, rigidity, and reliability.
1. Angle Milling Heads
Angle milling heads are engineered to extend the capability of horizontal milling machines by enabling angular and multi-directional cutting. They’re especially useful in mold making and aerospace part production, where complex surfaces or inclined planes are common. Yih Kuan’s angle heads offer high torque output, stable performance, and smooth rotation, making them perfect for both light finishing and heavy stock removal.
2. Turret Milling Heads
While turret heads are often associated with vertical turret mills, their flexible design also benefits horizontal setups when paired with adapter plates or cross-axis attachments. Yih Kuan’s turret heads allow precise angular adjustment and rapid tool positioning, offering the versatility required in maintenance workshops, prototyping, and custom part fabrication.
3. CNC Milling Heads
In today’s automated manufacturing, CNC-controlled heads deliver the perfect balance between speed and precision. Yih Kuan’s CNC milling heads integrate precision servo motors, automatic tool change compatibility, and intelligent control systems. They’re capable of executing high-speed, high-torque operations while maintaining micron-level accuracy — a must for industries like automotive and die-casting.
4. Gantry Milling Heads
When it comes to large-scale components and heavy metal cutting, Yih Kuan’s gantry milling heads provide the robustness required for extended machining paths. Designed for use in CNC gantry or bridge-type mills, these heads ensure superior rigidity, efficient chip evacuation, and consistent torque transmission across long cutting distances.
Applications Across Industries
Horizontal milling heads are widely used in industries where strength and precision are non-negotiable. Below are some of the key sectors that rely on horizontal milling systems:
- Automotive Manufacturing: Ideal for machining engine blocks, transmission housings, and chassis components that require deep pocketing and uniform surface finishes.
- Mold & Die Industry: Perfect for large mold bases and tool steel materials, where high rigidity and stable spindle torque are essential for fine detailing.
- Aerospace Engineering: Used for high-strength alloys such as titanium and Inconel, where accuracy and repeatability determine component reliability.
- Heavy Equipment & Energy: Applied in the production of structural frames, gearboxes, and turbine housings that demand consistent power over long cycles.
Enhancing Horizontal Milling Performance with Yih Kuan
At Yih Kuan, we understand that every machining setup is different — which is why our milling heads are designed for compatibility, flexibility, and long-term performance. Our engineering team integrates decades of experience into every product, ensuring that each head meets the exacting demands of heavy-duty environments.
Whether you are upgrading an existing horizontal mill or customizing a CNC gantry system, Yih Kuan provides milling heads that combine strength and precision. Each unit undergoes rigorous quality testing for torque output, thermal balance, and vibration resistance, guaranteeing stable and repeatable results in every application.
Why Choose Yih Kuan?
- Comprehensive Product Range: From angle to CNC and gantry milling heads, Yih Kuan offers a complete solution for any horizontal or vertical configuration.
- Precision Engineering: Every head is crafted with premium-grade materials, hardened components, and tight manufacturing tolerances.
- Customization Support: Our experts can tailor spindle tapers, mounting dimensions, and speed ranges to match your specific machine setup.
- Proven Reliability: Trusted by mold, aerospace, and automotive manufacturers worldwide for stability and long service life.
Conclusion
Horizontal milling heads play an essential role in maximizing the power, accuracy, and flexibility of heavy-duty machining systems. By integrating high-performance milling heads from Yih Kuan, manufacturers can unlock new levels of productivity and precision while extending the lifespan of their machines. Whether your focus is on mold production, aerospace components, or large-scale metal fabrication, Yih Kuan provides the milling technology and expertise you can rely on.
YIH KUAN ENT CO., LTD. — your trusted partner in advanced milling head innovation and performance excellence.
